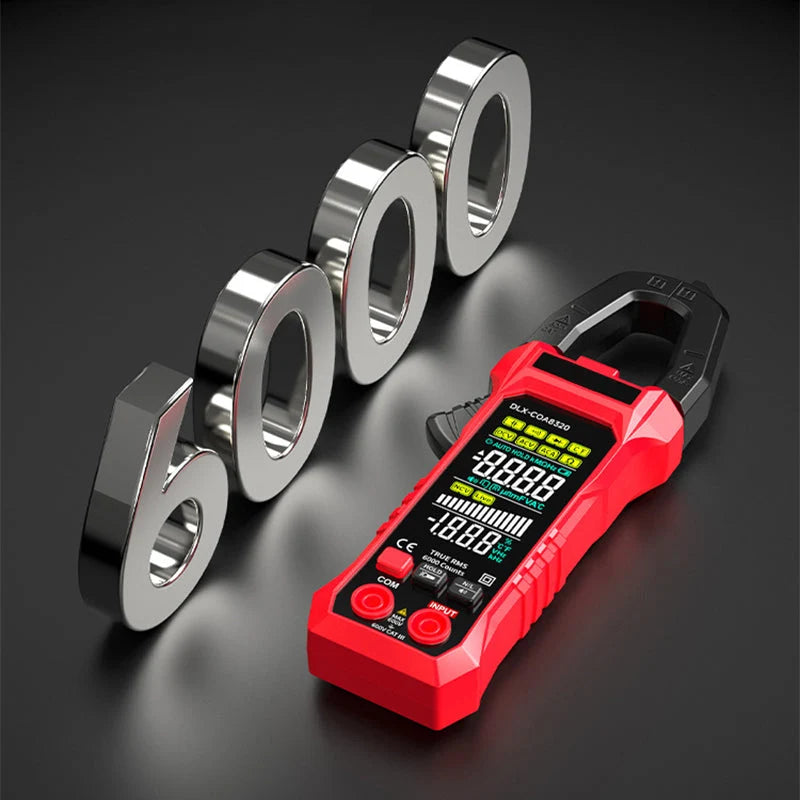

Digital Clamp Ammeter – Multifunction Measuring Device

No measurable value displayed – and the work comes to a halt.

Those who work on cables under poor lighting conditions know the problem: the display barely shows anything, the value disappears the next moment, and you fumble your way through troubleshooting with unreliable tools. The Digital Clamp Ammeter with a large LCD display, built-in flashlight, and data-hold function puts an end to this – the current measurement value remains frozen until you have noted it, and the automatic shutdown ensures the battery does not unnecessarily drain.

Advantages

• No measurement value is lost: The Data-Hold function freezes the current display value – you no longer have to watch frantically or check the same measurement point twice.
• No extra light needed anymore: The integrated flashlight directly illuminates the work area – allowing you to work in dark distribution boxes or flush-mounted installations without additional lighting.
• No more wondering if the device is still on: The automatic shutdown feature protects the battery – you pick up the measuring device the next time and it still has power.

Specifications

• Alternating current: 0.01 A – 600 A (Manual), 0.3 A – 600 A (Auto)
• Direct voltage: 0.1 V – 600 V (Manual), 0.8 V – 600 V (Auto)
• Alternating voltage: 0.01 V – 600 V (Manual), 0.8 V – 600 V (Auto)
• Resistance: 0.1 Ω – 60 MΩ
• Capacitance: 0.001 nF – 60 mF
• Temperature: -50 °C to 1000 °C
• Frequency: 50 Hz–60 Hz (current) / 40 Hz–2 kHz (voltage)
• Jaw opening: 25 mm
• Power supply: 2 × AAA batteries (not included)
• Measurement functions: AC/DC voltage, alternating current, resistance, frequency, NCV, continuity test, voltage test, diode test

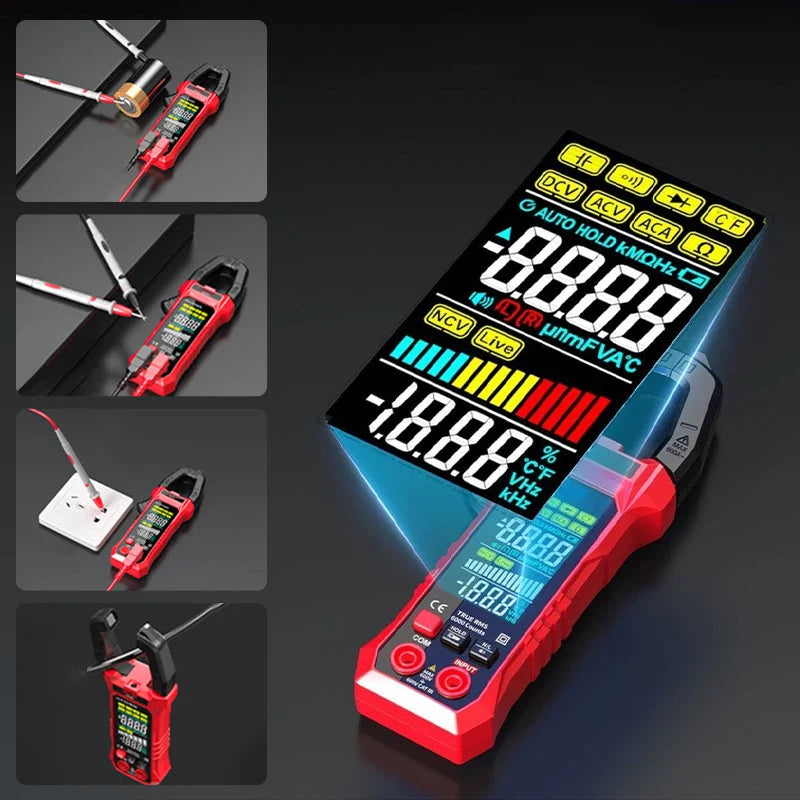

• Display: Large LCD

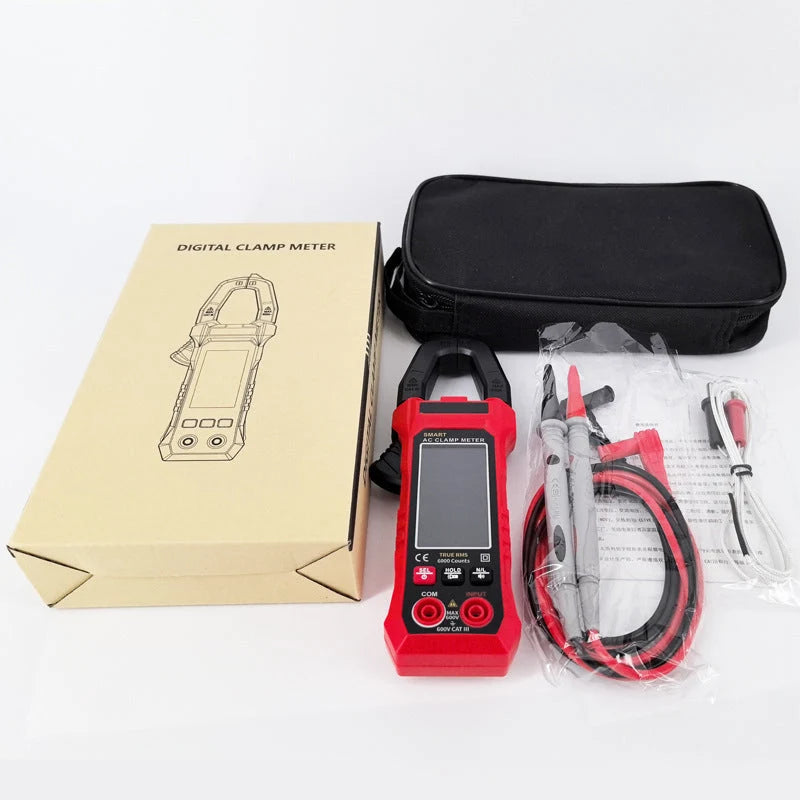

• Scope of delivery: 1 × Digital clamp ammeter set

Application

1. Insert: Insert two AAA batteries and switch on the device.

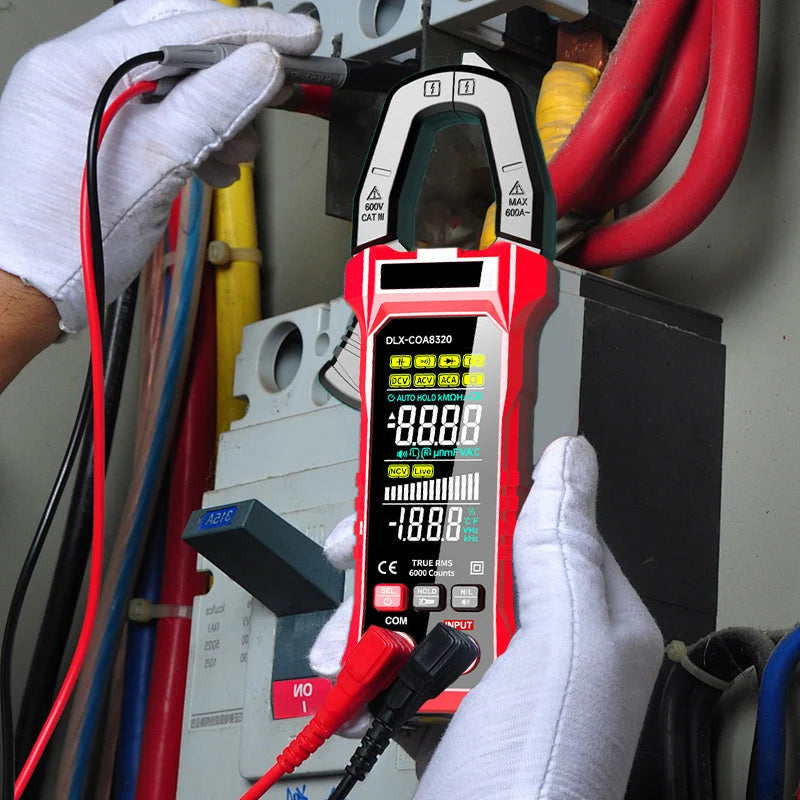

2. Measure: Place the jaw opening around the conductor to be tested, select the measurement range, and read the value on the LCD – activate Data-Hold if needed to freeze the value.
3. Secure: After use, switch off the device or wait for automatic shutdown; use the flashlight for additional illumination in dark environments.

Pro tip: For hard-to-access cables, first use the NCV function (non-contact voltage detection) to identify live conductors – only then apply the clamp. This saves time and significantly increases work safety.
